WING

WING

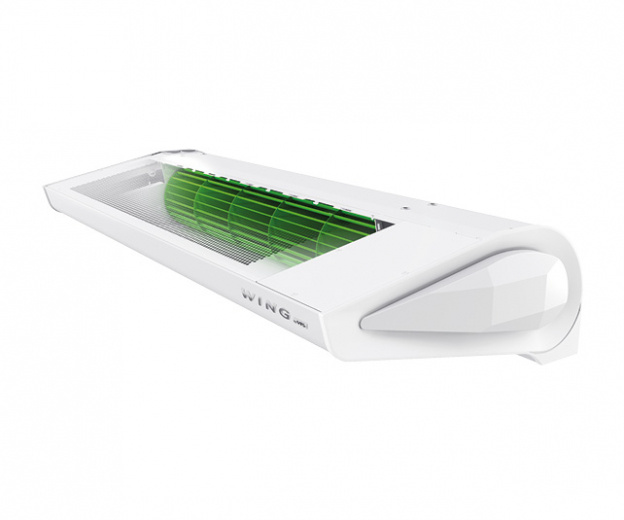

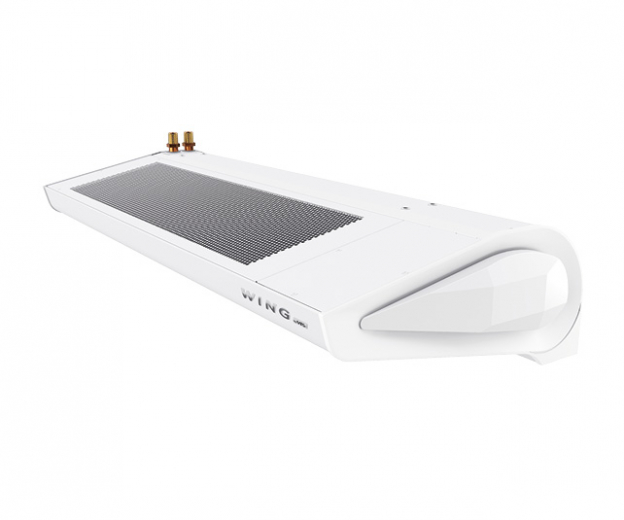

The WING air curtain is a device that aims to create an invisible barrier that separates environments with different air parameters from each other.

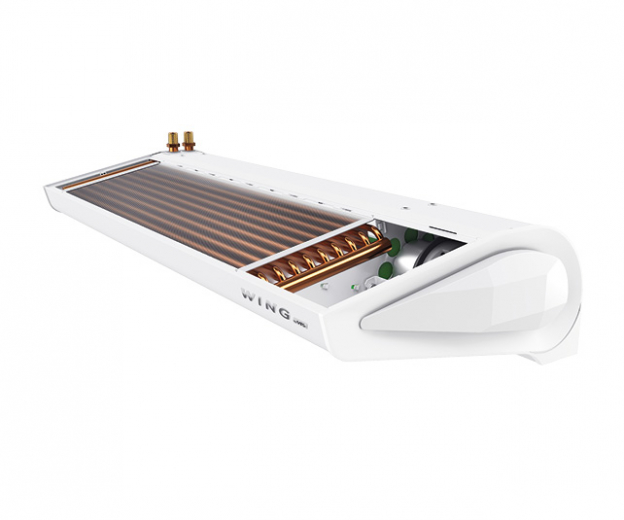

The minimalist shape of the WING curtain housing, inspired by the shape of glider wings, and the characteristic diamond-shaped side covers give the curtain a unique harmony and elegance. The energy-saving motor, efficient fan and double-row heat exchanger ensure quiet operation and the highest efficiency of the device.

The WING air curtain features:

minimalist housing shape
energy-saving motor
quiet operation
up to 4 m air stream range

Description

Device types

	WING W	WING E	WING C
Exchanger type	Water exchanger	Electric exchanger	Cold curtain (without exchanger)
Engine type	AC/EC	AC/EC	AC/EC
Range of heating power	4-47 kW	2-15 kW	–
Maximum air efficiency	1850-4400 m³/h	1850-4500 m³/h	1950-4600 m³/h
Maximum air range	3,7 m	3,7 m	4 m

Available sizes

100 cm	150 cm	200 cm
